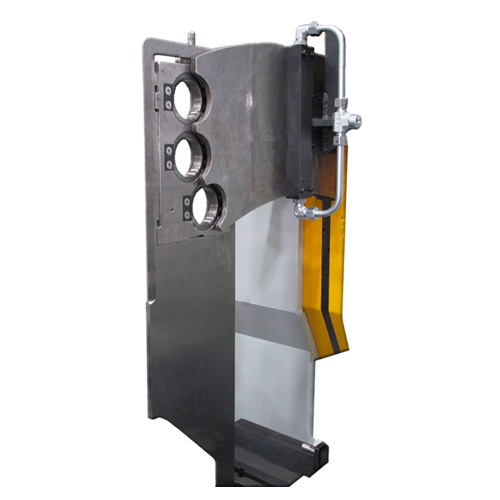

Swing Arm
Servo controlled swing arm tooling
Precision ball screw spindle feed
(3) Three full axis servo control
3.5-minute auto dress cycle
Variable speed spindle drives
Fast and simple change over between parts

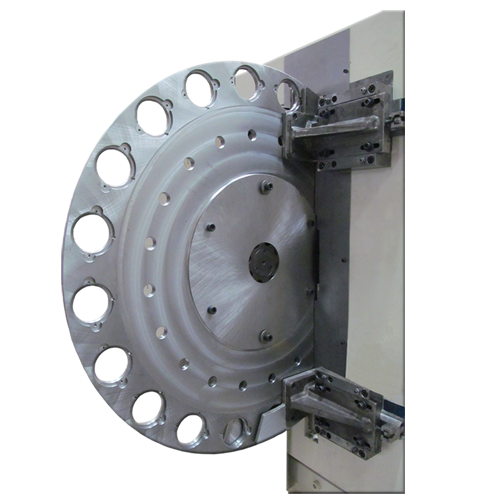

Rotary
Production: Up to 2000 PPH
Post Process Gauging Controlled
Grinding Wheels: Stationary
Type of Grind: Shearing of 50-70% of stock as component enters wheels
Rotary Plunge
One piece ground at a time
Grinding Wheels: Infeed every cycle
Type of Grind: Plunge feed grind
Gage feedback on every part

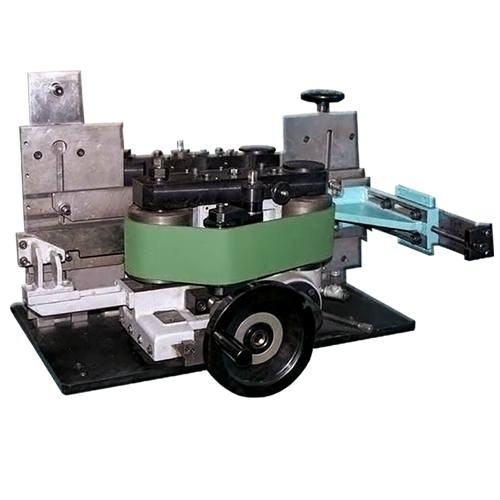

Through Feed
Very high output (normally highest PPH rate available)
Grinding Wheels: Stationary
Type of Grind: Shearing or progressive grinding as component enters wheels
Head Settings: Closed or open in front depending on part configuration

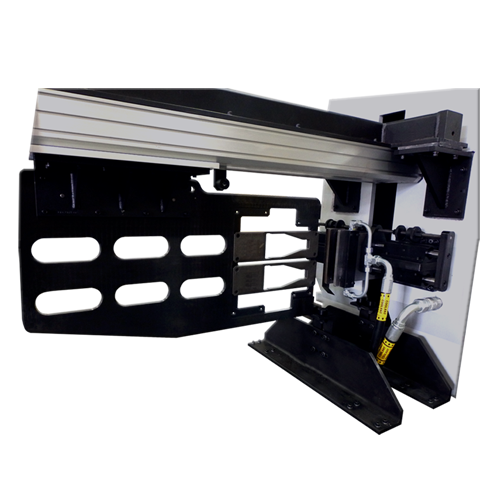

Reciprocator
Low to high production rates
Flexible changeover as quick as 10-minutes
Can grind stepped parts (i.e. non-coplanar connecting rods)
Plunge feed grinding cycle
High stock removal capability
No compound head settings
Flat and parallel grinding within microns!

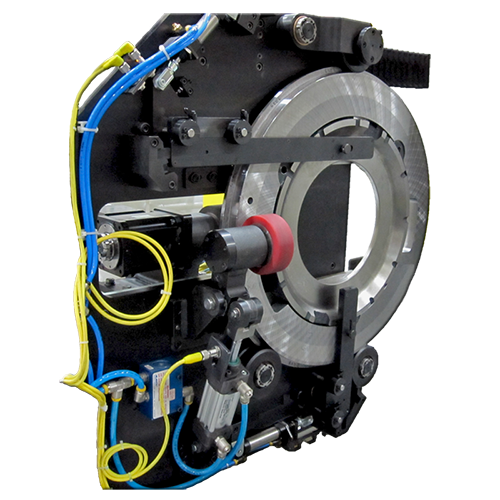

Park and Grind
Grind large parts such as large rings & clutch plates
Five (5) servo axis (no hydraulics)
Low to high production rates
High stock removal capability
Plunge feed grinding cycle
Flexible changeover as quick as 3 minutes
Integrated grind line gauging system
The gauge automatically adjusts during part changeover thru a servo driven ball screw system
