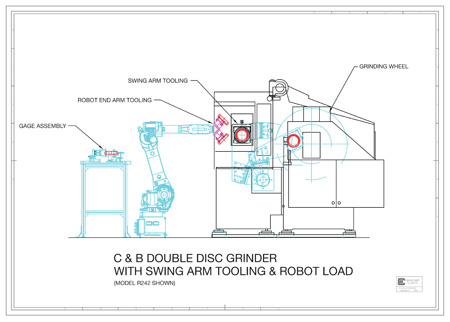

Swing Arm Tooling

Specifications

  • Cast machine base
  • Horizontal spindle orientation
  • 30, 36 & 42-inch diameter grinding wheels
  • 3.75-inch grinding wheel width
  • 3900-6500 surface feet per minute
  • Spindle motor horse-power varies based on wheel size (20-100 HP)
  • Quill feed spindle type
  • Precision ball screw wheel feed
  • (.004-7.3) inches per minute feed rate
  • Servo driven swing arm mechanism
  • Automatic dress cycle
{}
